Morse Pt saddle search (built-in potential)

A small dimer saddle search on morse_pt using the geometries from benchmarks/data/one_pt_saddle_search/. After the client finishes, plot the trajectory with rgpycrumbs eon plt-saddle (same single-ended landscape stack as minimization).

Setup and run

Profile and landscape

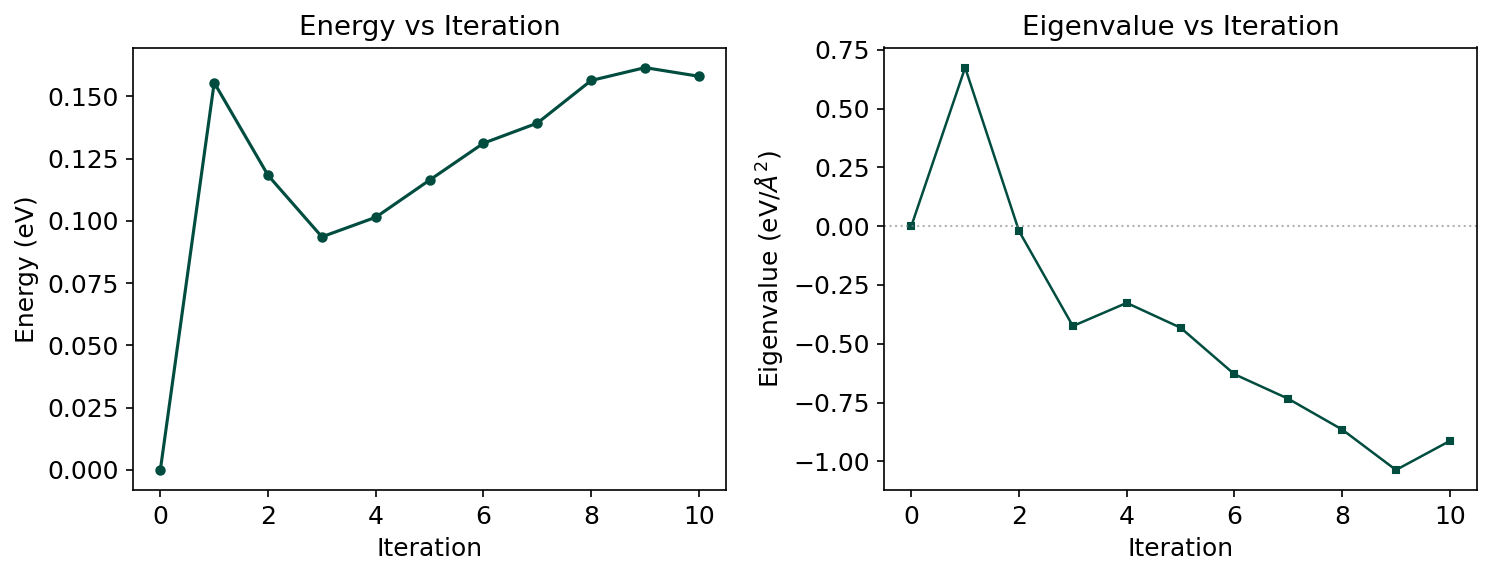

# Profile (energy / eigenvalue vs iteration when available)
out_p = plot_dir / "saddle_profile.png"
try:
    run_rgpycrumbs(
        "eon",
        "plt-saddle",
        "--job-dir",
        str(work),
        "--label",
        "pt saddle",
        "--plot-type",
        "profile",
        "--dpi",
        "150",
        "-o",
        str(out_p),
    )
    show_plot(out_p)
except Exception as exc:
    print("plt-saddle profile skipped:", exc)

$ /home/runner/work/eOn/eOn/.pixi/envs/docs-mta/bin/python3.12 -m rgpycrumbs.cli eon plt-saddle --job-dir /tmp/eon_pt_saddle_7rrzid9g --label pt saddle --plot-type profile --dpi 150 -o /tmp/eon_pt_saddle_7rrzid9g/plots/saddle_profile.png

--> Dispatching to: /home/runner/work/eOn/eOn/.pixi/envs/docs-mta/bin/python3.12 /home/runner/work/eOn/eOn/.pixi/envs/docs-mta/lib/python3.12/site-packages/rgpycrumbs/eon/plt_saddle.py --job-dir /tmp/eon_pt_saddle_7rrzid9g --label pt saddle --plot-type profile --dpi 150 -o /tmp/eon_pt_saddle_7rrzid9g/plots/saddle_profile.png
[10/21/26 13:48:58] INFO     INFO - Loading dimer trajectory from
                             /tmp/eon_pt_saddle_7rrzid9g
                    INFO     INFO - Using dimer metrics from frame metadata (11
                             rows)
                    INFO     INFO - Loaded 11 frames, 11 data rows
                    INFO     INFO - Loaded trajectory from
                             /tmp/eon_pt_saddle_7rrzid9g (11 frames, saddle=yes)
                    INFO     INFO - Setting global rcParams for ruhi theme
                    WARNING  WARNING - Font 'Atkinson Hyperlegible' not found.
                             Falling back to 'sans-serif'.
[10/21/26 13:48:59] INFO     INFO - Saved
                             /tmp/eon_pt_saddle_7rrzid9g/plots/saddle_profile.pn
                             g

--> Using active interpreter (readcon/plot stack present or --dev)
../../_images/f97605ecf0cef85eb6302cead68d2d0f590febc3d2f6c05f6ad39c0ec945d992.png

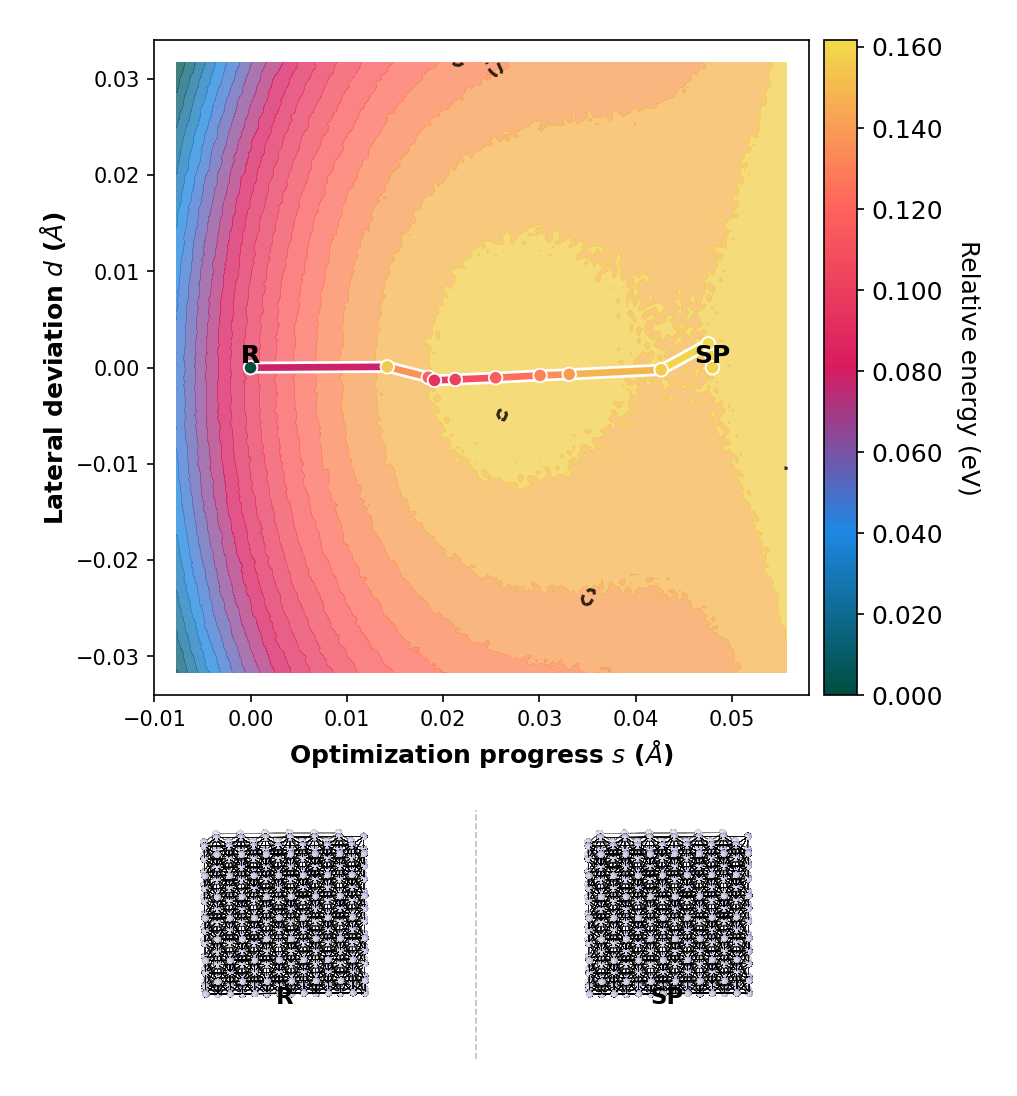

out_l = plot_dir / "saddle_2d.png"
try:
    run_rgpycrumbs(
        "eon",
        "plt-saddle",
        "--job-dir",
        str(work),
        "--label",
        "pt saddle",
        "--plot-type",
        "landscape",
        "--project-path",
        "--surface-type",
        "grad_imq",
        "--plot-structures",
        "endpoints",
        "--strip-renderer",
        "xyzrender",
        "--strip-dividers",
        "--dpi",
        "150",
        "-o",
        str(out_l),
    )
    show_plot(out_l)
except Exception as exc:
    print("plt-saddle landscape skipped:", exc)

$ /home/runner/work/eOn/eOn/.pixi/envs/docs-mta/bin/python3.12 -m rgpycrumbs.cli eon plt-saddle --job-dir /tmp/eon_pt_saddle_7rrzid9g --label pt saddle --plot-type landscape --project-path --surface-type grad_imq --plot-structures endpoints --strip-renderer xyzrender --strip-dividers --dpi 150 -o /tmp/eon_pt_saddle_7rrzid9g/plots/saddle_2d.png

--> Dispatching to: /home/runner/work/eOn/eOn/.pixi/envs/docs-mta/bin/python3.12 /home/runner/work/eOn/eOn/.pixi/envs/docs-mta/lib/python3.12/site-packages/rgpycrumbs/eon/plt_saddle.py --job-dir /tmp/eon_pt_saddle_7rrzid9g --label pt saddle --plot-type landscape --project-path --surface-type grad_imq --plot-structures endpoints --strip-renderer xyzrender --strip-dividers --dpi 150 -o /tmp/eon_pt_saddle_7rrzid9g/plots/saddle_2d.png
[10/21/26 13:49:01] INFO     INFO - Loading dimer trajectory from
                             /tmp/eon_pt_saddle_7rrzid9g
                    INFO     INFO - Using dimer metrics from frame metadata (11
                             rows)
                    INFO     INFO - Loaded 11 frames, 11 data rows
                    INFO     INFO - Loaded trajectory from
                             /tmp/eon_pt_saddle_7rrzid9g (11 frames, saddle=yes)
                    INFO     INFO - Setting global rcParams for ruhi theme
                    WARNING  WARNING - Font 'Atkinson Hyperlegible' not found.
                             Falling back to 'sans-serif'.
                    INFO     INFO - Calculating landscape coordinates (RMSD-A,
                             RMSD-B)...
[10/21/26 13:49:18] INFO     INFO - Generating 2D surface using grad_imq
                             (Projected: True)...
                    INFO     INFO - Unable to initialize backend 'tpu':
                             INTERNAL: Failed to open libtpu.so: libtpu.so:
                             cannot open shared object file: No such file or
                             directory
                    INFO     INFO - Unable to initialize backend 'proxy': The
                             'proxy' backend requires the address of an IFRT
                             Proxy server. Set it via the JAX_BACKEND_TARGET
                             environment variable or the jax_backend_target
                             config option, e.g.
                             JAX_BACKEND_TARGET=grpc://localhost:29000.
[10/21/26 13:49:25] INFO     INFO - Calculating landscape coordinates (RMSD-A,
                             RMSD-B)...
[10/21/26 13:49:43] INFO     INFO - Loading /tmp/tmp7wheohk7.xyz
                    INFO     INFO - Built graph: 336 atoms, 1607 bonds
[10/21/26 13:49:44] INFO     INFO - Loading /tmp/tmp9spqwjae.xyz
                    INFO     INFO - Built graph: 336 atoms, 1606 bonds
[10/21/26 13:49:46] INFO     INFO - Saved
                             /tmp/eon_pt_saddle_7rrzid9g/plots/saddle_2d.png

--> Using active interpreter (readcon/plot stack present or --dev)
../../_images/e0431703390d2bbb364ea212ffdf7d0a551d7ca111f68be77118c99453a6087e.png
